Ka-Band Level Setting Attenuator, Limited Run

26.5 to 40 GHz, 0 to 35 dB, WR-28 Waveguide
SKU:STA-30-28-M2
Availability:Product Discontinued
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STA-30-28-M1 as an alternative solution. Read more about Limited Run Products here.

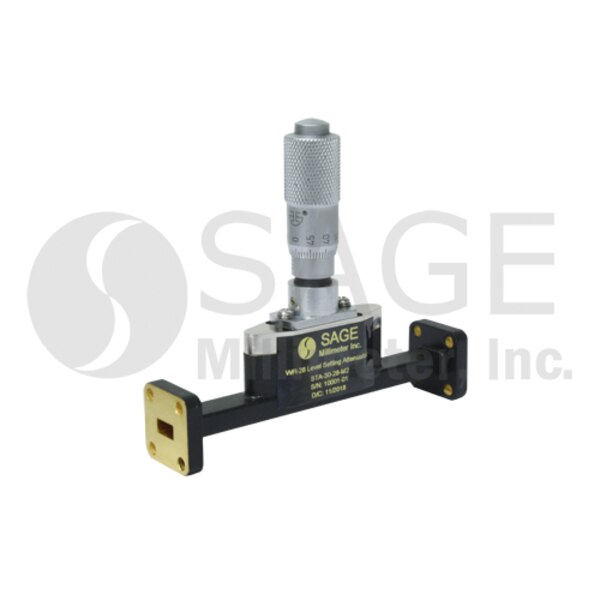

STA-30-28-M2 is a Ka band level setting attenuator that covers the frequency range of 26.5 to 40 GHz. The attenuator has a micrometer dial which allows for repeatable settings. The level setting attenuator is an ideal piece of equipment in waveguide systems where broadband level setting is required. The attenuator exhibits 0.2 dB typical insertion loss and up to 35 dB nominal attenuation.
ECCN: EAR99
Login to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Attenuation0 to 35 dB
VSWR1.2
Power Handling1 W
RF PortWR-28 Waveguide
Attenuator TypeLevel Setting
ConfigurationStandard
