WR-22 Waveguide Rectangular Horn Antenna

25 dBi Gain, 33 to 50 GHz, Q-Band
SKU:SAR-2507-22-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

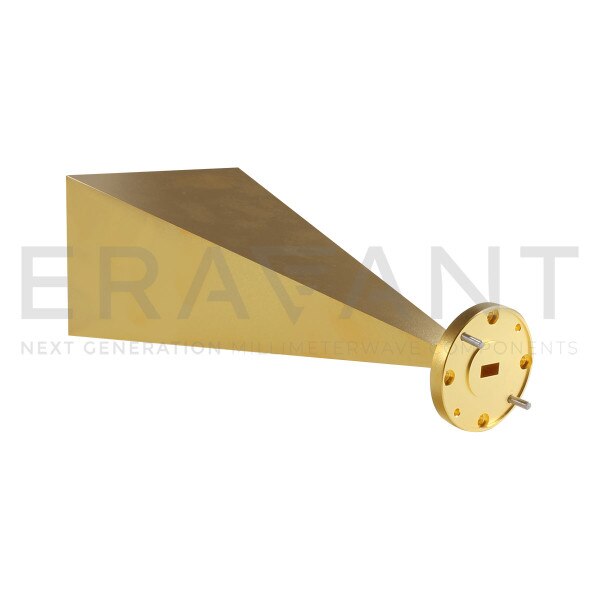

SAR-2507-22-S2 is a Q-band pyramidal horn antenna that operates from 33 to 50 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 7 degrees on the E-plane and 9 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-22 waveguide with UG-383/U flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $720.00
10 - 24 $648.00
25 - 49 $583.20

Bulk Availability

QuantityAvailability
1 - 10In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency33 GHz
Maximum Frequency50 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane
Return Loss23 dB
Antenna PortWR-22 Waveguide
