WR-15 Waveguide Rectangular Horn Antenna

25 dBi Gain, 50 to 75 GHz, V-Band
SKU:SAR-2507-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR15GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-WR15PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

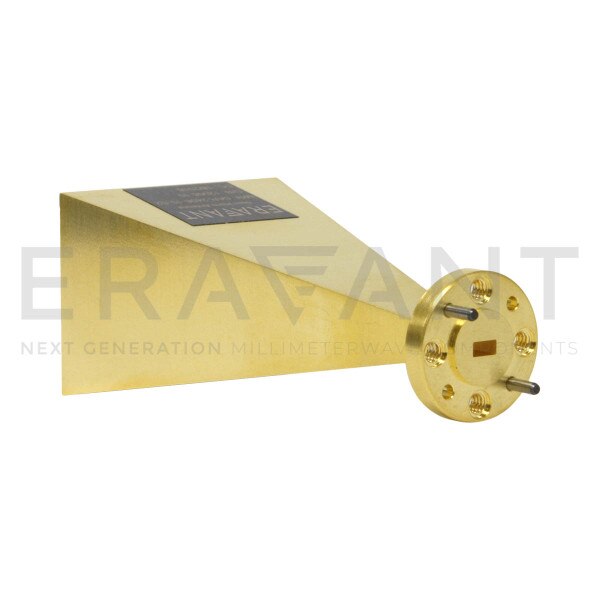

SAR-2507-15-S2 is a V-band pyramidal horn antenna that operates from 50 to 75 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-15 waveguide with UG-385/U flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane9°
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-15 Waveguide
