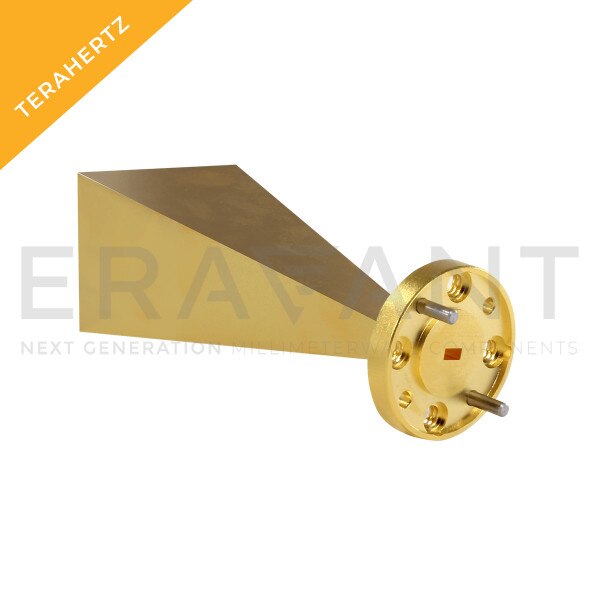

WR-08 Waveguide Rectangular Horn Antenna

25 dBi Gain, 90 to 140 GHz, F-Band
SKU:SAR-2507-08-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAR-2507-08-S2 is an F-band pyramidal horn antenna that operates from 90 to 140 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-08 waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
Antenna PortWR-08 Waveguide
