Ka-Band Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-0400PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

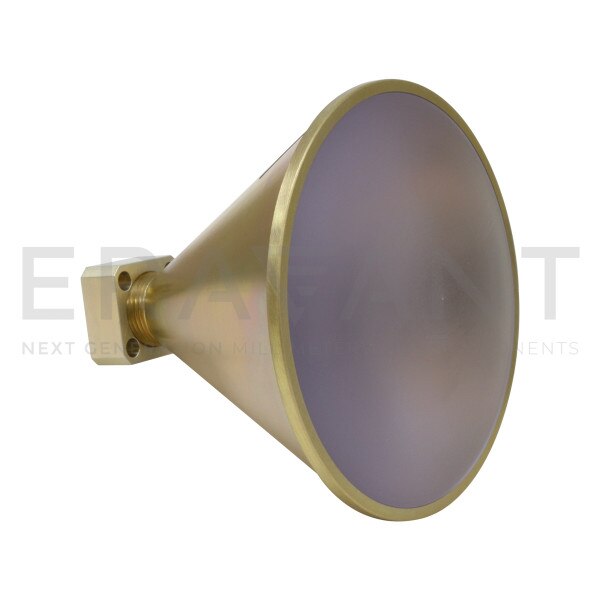

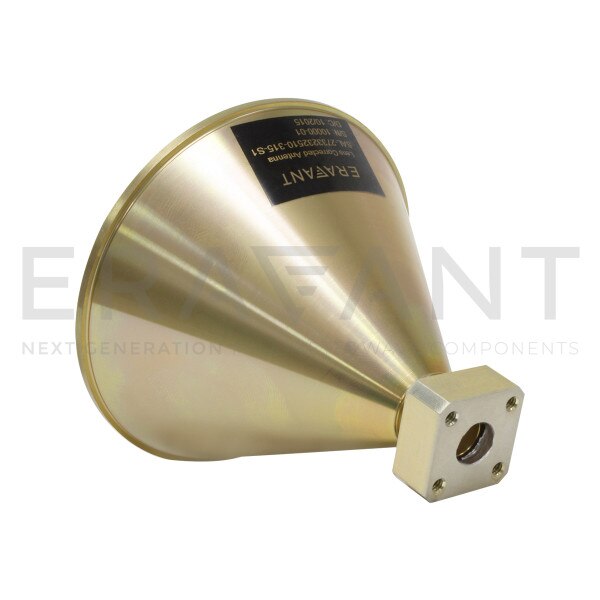

SAL-2733232510-315-S1 is a Ka-band lens corrected antenna that operates from 27 to 32 GHz. At a center frequency of 29.5 GHz, the antenna delivers 25 dBi nominal gain, 8 degrees typical half power beamwidth on the E-plane, and 11 degrees typical half power beamwidth on the H-plane. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The lens corrected antenna is equipped with a 0.315" diameter circular waveguide and UG-599/U-M flange as its input port. It supports both linear and circular polarized waveforms.
