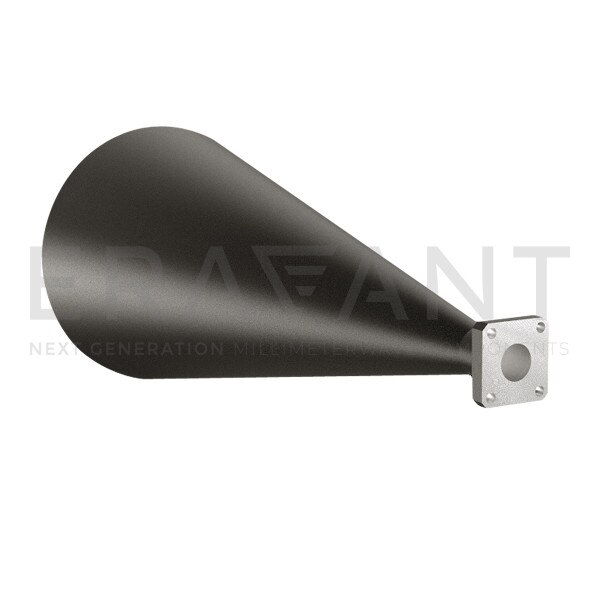

K-Band Conical Horn Antenna

25 dBi Gain, 20 to 24.5 GHz, 0.396" Diameter Circular Waveguide
SKU:SAC-2507-396-S2
Availability:4 to 6 Weeks ARO
SAC-2507-396-S2 is a K-band conical horn antenna that operates from 20 to 24.5 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.396" diameter circular waveguide with UG-595/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 +$583.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency20 GHz
Maximum Frequency24.5 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.396" Dia Circular WG
