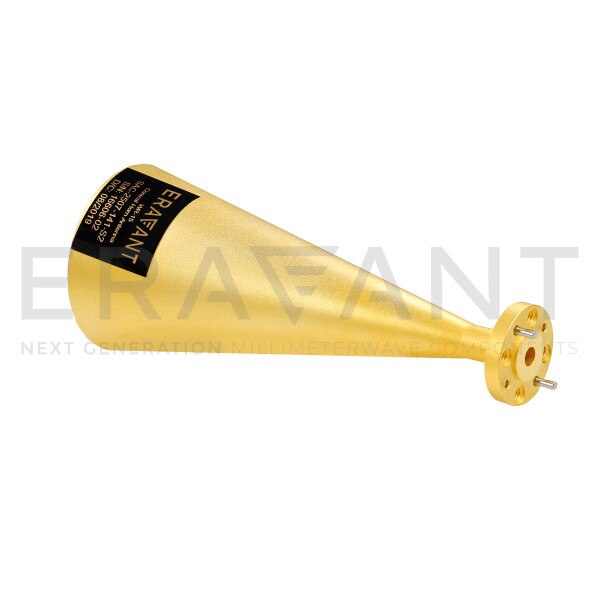

V-Band Conical Horn Antenna

25 dBi Gain, 58 to 68 GHz, 0.141" Diameter Circular Waveguide
SKU:SAC-2507-141-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2507-141-S2 is a V-band conical horn antenna that operates from 58 to 68 GHz. The antenna offers 25 dB nominal gain and a typical half powerbeam width of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.141" diameter circular waveguide with UG-385/U-M flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $600.00
10 - 24 $540.00
25 - 49 $486.00

Bulk Availability

QuantityAvailability
1 - 5In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency58 GHz
Maximum Frequency68 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.141" Dia Circular WG
