W-Band Conical Horn Antenna

25 dBi Gain, 87 to 100 GHz, 0.094" Diameter Circular Waveguide
SKU:SAC-2507-094-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

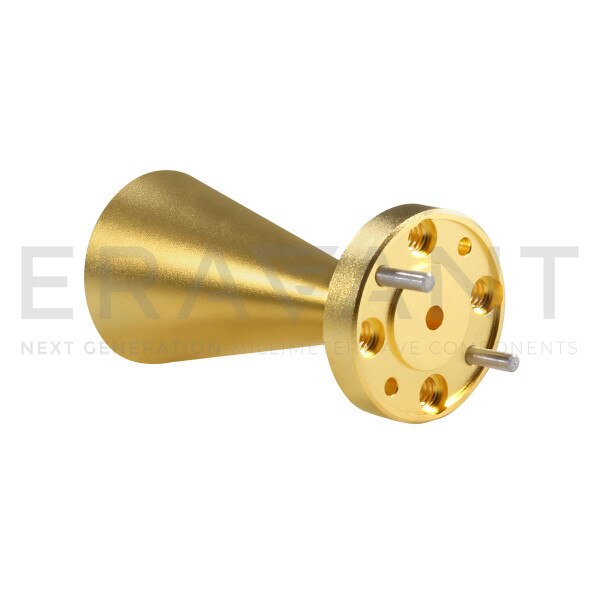

SAC-2507-094-S2 is a W-band conical horn antenna that operates from 87 to 100 GHz. The antenna offers 25 dB nominal gain and a typical half powerbeam width of 9 degrees on the E-plane and 10 degrees on the H-plane. The horn also offers typical sidelobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.094" diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 - 49$486.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency87 GHz
Maximum Frequency100 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane
3 dB Beamwidth, H-Plane10°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.094" Dia Circular WG
