WR-03 Waveguide Conical Horn Antenna

25 dBi Gain, 220 to 325 GHz, 0.036" Diameter Circular Waveguide
SKU:SAC-2507-039-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

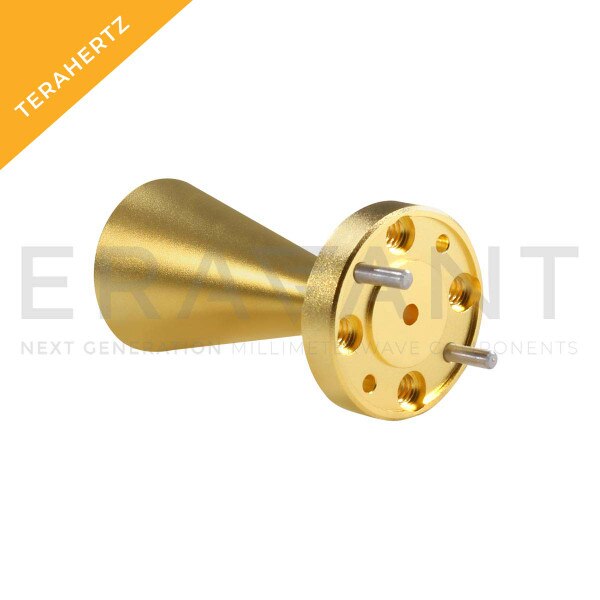

SAC-2507-039-S2 is a WR-03 conical horn antenna that operates from 220 to 325 GHz. The antenna offers 25 dBi nominal gain and a typical half power beamwidth of 7.5 degrees on the E-plane and 8.5 degrees on the H-plane. The horn also offers typical sidelobes of -16 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.039" diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,550.00
5 - 9$1,395.00
10 +$1,255.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency325 GHz
Gain25 dBi
3 dB Beamwidth, E-Plane7.5°
3 dB Beamwidth, H-Plane8.5°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.039" Dia Circular WG
