Broadband Power Amplifier

24 to 44 GHz, 35 dB Gain, +30 dBm P1dB, 2.92 mm (F)
SKU:SBP-2434432530-2828-E1-HR
Availability:5 to 7 Days ARO

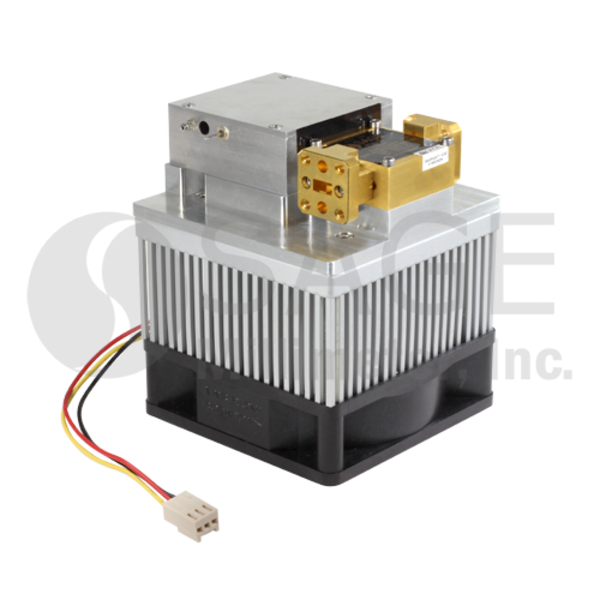

SBP-2434432530-2828-E1-HR is a power amplifier with a typical small signal gain of 25 dB and a nominal P1dB of +30 dBm across the frequency range of 24 to 44 GHz. The DC power requirement for the amplifier is +8 VDC/2.4 A quiescent and +8 VDC/4.0 A under RF drive. The mechanical configuration is an inline structure with WR-28 Uni-Guide™ waveguides. Other port configurations, such as K connectors and WR-28 waveguides for either the input or output port, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency44 GHz
Gain35 dB
P1dB+30 dBm
Psat+32 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Voltage+8 VDC
DC Bias4000 mA
RF Input/Output2.92 mm (F)
ConfigurationHeatsink Included
