Ka-Band Phase Shifter

24 to 44 GHz, 0 to 180° Range, WR-28 Waveguide
SKU:STP-18-28-M1
Availability:1 Week ARO

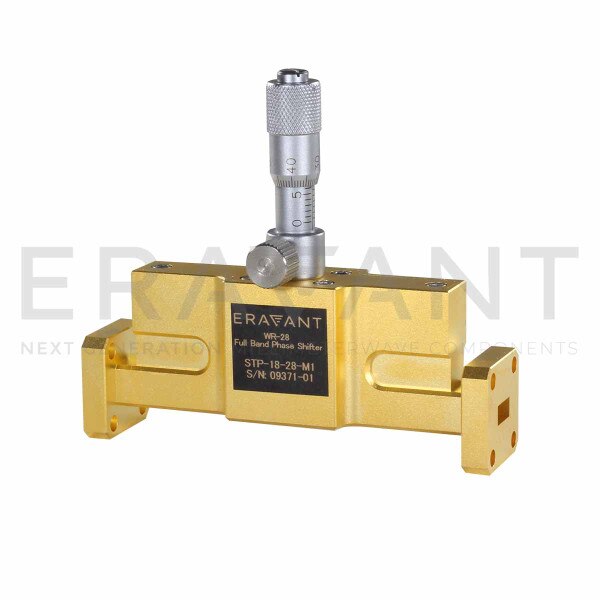

STP-18-28-M1 is a Ka-Band micrometer driven phase shifter that covers the frequency range of common 5G bands from 24 to 44 GHz. The phase shifter features a precision micrometer dial with a knurled head locking screw, which allows for stable, repeatable settings that can be locked at any phase shift value. The phase shifter is an ideal piece of equipment in waveguide systems where broadband phase shifting is required. The phase shifter exhibits a 0.5 dB typical insertion loss and an adjustable phase range of up to 180 degrees.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $790.00
10 - 24 $711.00
25 - 49 $639.90

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency24 GHz
Maximum Frequency44 GHz
Insertion Loss0.5 dB
Phase Shifting Range0 to 180°
Power Handling1.0 W
Input/OutputWR-28 Waveguide
