WR-42 Waveguide Standard Gain Horn Antenna

24 dBi Gain, K-Band
SKU:SAZ-2410-42-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

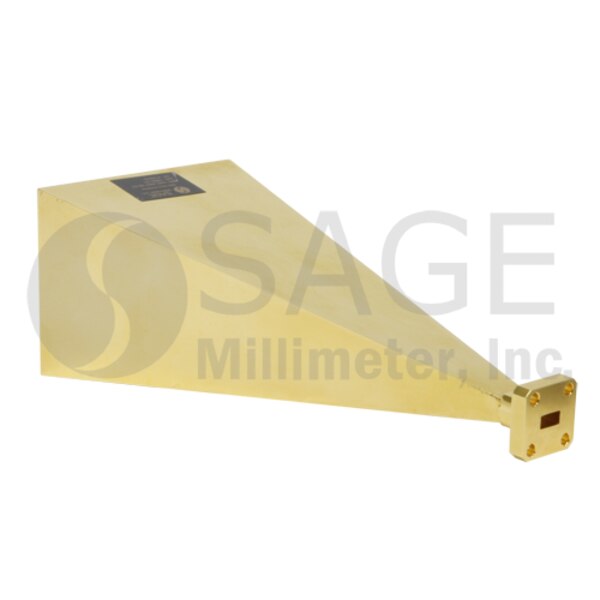

SAZ-2410-42-S1 is a K-band standard gain horn antenna that operates from 18 GHz to 26.5 GHz. The antenna offers 24 dBi nominal gain, a typical half power beamwidth of 9.7 degrees on the E-plane and 11.0 degrees on the H-plane at the center frequency, respectively. The antenna supports linear polarized waveforms. The input of this antenna is a WR-42 waveguide with UG-595/U flange. The standard gain horn is offered for antenna range calibration purpose mainly, but it can be also used for general purpose system set ups.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency26.5 GHz
Gain24 dBi
3 dB Beamwidth, E-Plane9.7°
3 dB Beamwidth, H-Plane11°
Return Loss23 dB
Antenna PortWR-42 Waveguide
