WR-15 Waveguide Rectangular Horn Antenna

24 dBi Gain, 50 to 75 GHz, V-Band
SKU:SAR-2408-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

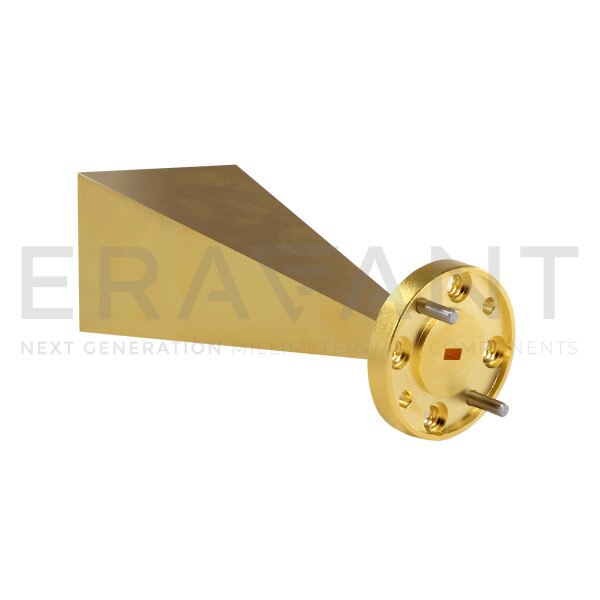

SAR-2408-15-S2 is a V-band pyramidal horn antenna that operates from 50 to 75 GHz. The antenna offers 24 dBi nominal gain and a typical half power beamwidth of 9.5 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-15 waveguide with UG-385/U flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $600.00
10 - 24 $540.00
25 - 49 $486.00

Bulk Availability

QuantityAvailability
1 - 28In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain24 dBi
3 dB Beamwidth, E-Plane9.5°
3 dB Beamwidth, H-Plane11°
VSWR1.15
Antenna PortWR-15 Waveguide
