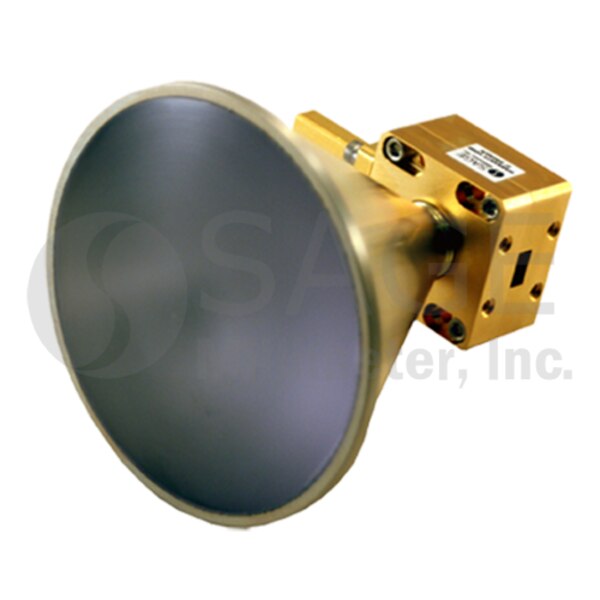

Ka-Band Circular Polarized Lens Corrected Antenna

24 dBi Gain, 26.3 to 27.2 GHz, WR-28 Waveguide
SKU:SAL-2632732410-28-C1
SAL-2632732410-28-C1 is a Ka-band circular polarized lens corrected antenna that operates from 26.3 to 27.2 GHz. At center frequency, the antenna delivers 24 dBi nominal gain and a 10 degree half power beam width. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels. The antenna incorporates a linear to circular waveform polarizer. This feature allows either RHCP or LHCP operations, depending on how the port is selected. This antenna is equipped with a WR-28 waveguide and UG-599/U flange as its input port.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency26.3 GHz
Maximum Frequency27.2 GHz
Gain24 dBi
3 dB Beamwidth (E-plane, H-plane)9°, 12°
Return Loss22 dB
PolarizationLinear and Circular
Antenna PortWR-28 Waveguide
