This item is oversized and will require special packaging. Pricing for a custom crate will be quoted separately.

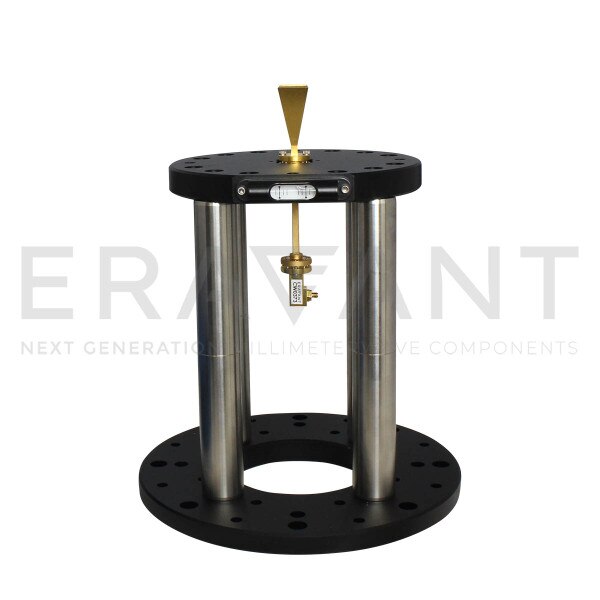

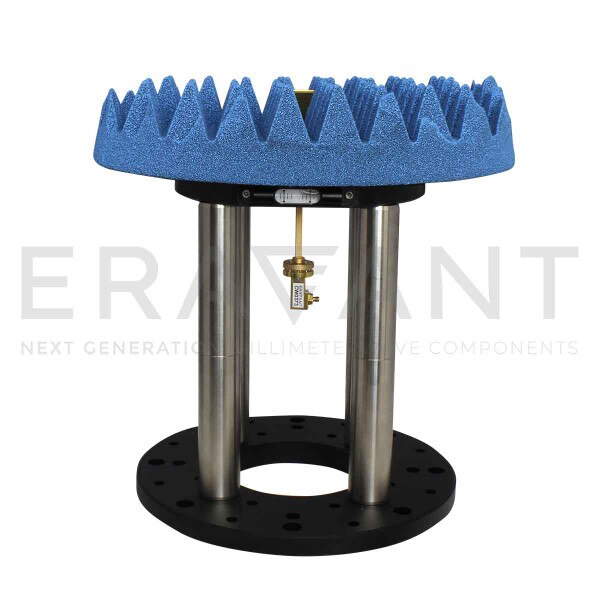

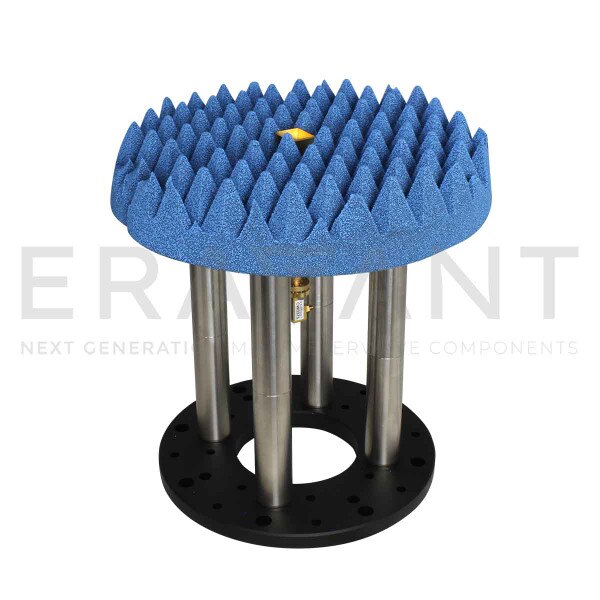

STY-MAA-AZ-101F-R1 is a W-band standard gain horn assembly that operates from 75 GHz to 110 GHz. The antenna offers 24 dBi nominal directivity, a typical half power beamwidth of 9.7 degrees on the E-plane and 11 degrees on the H-plane at the center frequency, respectively. The antenna supports linear polarized waveforms. The RF port is a right angle (90°) 1.0 mm coax connector. The antenna is mounted on a universal mounting cage, which is constructed from sturdy black anodized aluminum plates and optical grade stainless steel posts. The cage includes an integrated bubble level and a removable Velcro fastened absorber shield. The standard gain horn assembly is offered for antenna range gain calibration purposes, but it can be also used for general purpose system set ups.
