K-Band Dual Channel Short Range Speed Sensor Heads

24.125 GHz,+7 dBm Transmitting Power, 27 dBi Antenna Gain
Availability:IN STOCKPlease contact us if you need more units than what is available online.

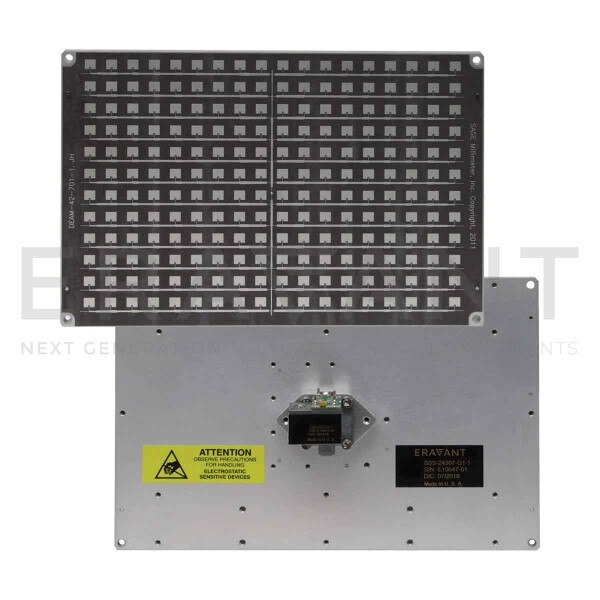

SSS-24307-27M-DW is a K Band, microstrip antenna-based Doppler sensor head that is designed and manufactured for short range measurements of a moving target's speed and direction. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5.0 VDC/250 mA. The sensor heads are configured with a microstrip antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated die-cast housing. Sensor heads with a single receiver are offered under model number SSS-24307-27M-SW and can only detect the speed of a moving target.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency24.125 GHz
TX Power+7 dBm
Antenna Gain27 dBi
3 dB BW (H x V)4.6° x 6.8°
DC Bias+5 VDC/250 mA
