K-Band Dual Channel Medium Range Speed Sensor Heads

24.125 GHz,+7 dBm Transmitting Power, 22 dBi Antenna Gain
SKU:SSS-24307-22M-D1
Availability:1 Week ARO

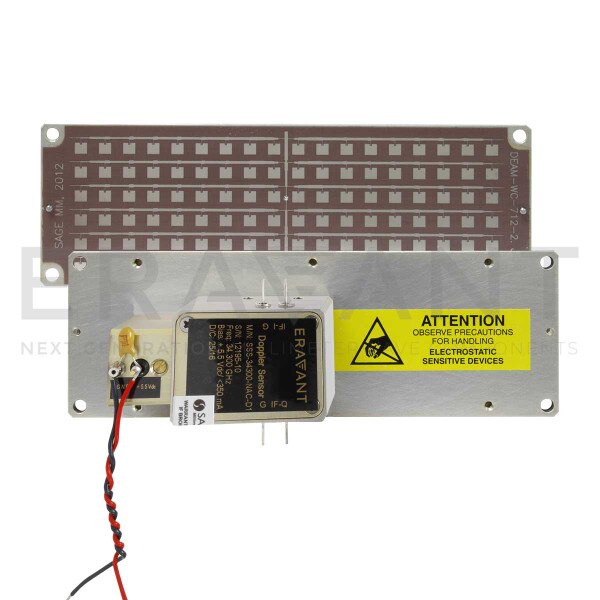

SSS-24307-22M-D1 is a K Band, microstrip antenna-based Doppler sensor head that is designed and manufactured for medium range measurements of a moving target's speed and direction. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5.0 VDC/250 mA. The sensor heads are configured with a microstrip antenna, T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in an integrated die-cast housing. Sensor heads with a single receiver are offered under model number SSS-24307-22M-S1 and can only detect the speed of a moving target.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$420.00
25 - 49$378.00
50 - 99$340.20

Bulk Pricing

Login to View Pricing

Technical Details

RF Center Frequency24.125 GHz
TX Power+7 dBm
Antenna Gain22 dBi
3 dB BW (H x V)4.6° x 14.8°
PolarizationLinear, V
DC Bias+5 VDC/250 mA
ChannelDual
RangeMedium
