K-Band Single Channel, Short Range Ranging Sensor Heads, Product Discontinued

This product has been discontinued and will not be restocked. Please contact us for an alternative model. Read more about Limited Run Products here.

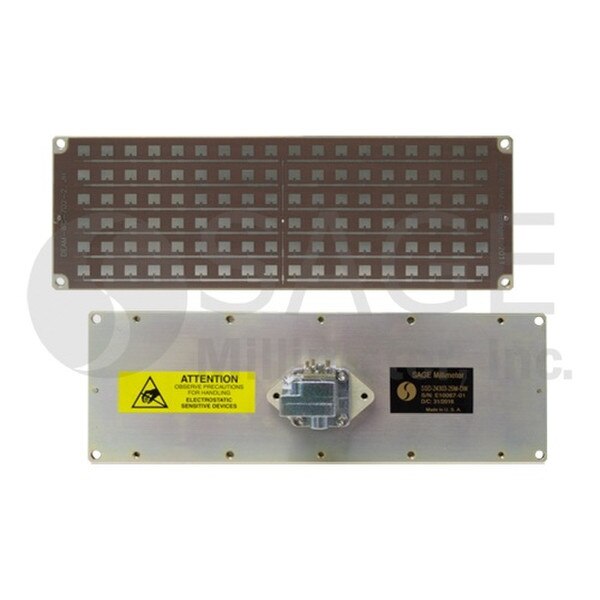

SSD-24303-22M-SW is a K Band, microstrip antenna-based ranging sensor head that is designed and manufactured for short range measurements of a moving or stationary target's range and speed. The sensor head has a center frequency of 24.125 GHz and takes a nominal bias of +5.0 VDC/250 mA. The frequency modulation bandwidth of ±75 MHz minimum is realized via a tuning voltage of 0 to +20 Volts. The sensor heads are configured with a microstrip antenna, T/R diplexer, a single channel receiver and a transmitter/receiver oscillator in an integrated die-cast housing. Sensor heads with a dual receiver are offered under model number SSD-24303-22M-DW and can also detect the direction of a target in addition to the range and speed.
