WR-34 Waveguide Rectangular Horn Antenna

23 dBi Gain, 22 to 33 GHz
SKU:SAR-2309-34-S2
Availability:3 Days ARO

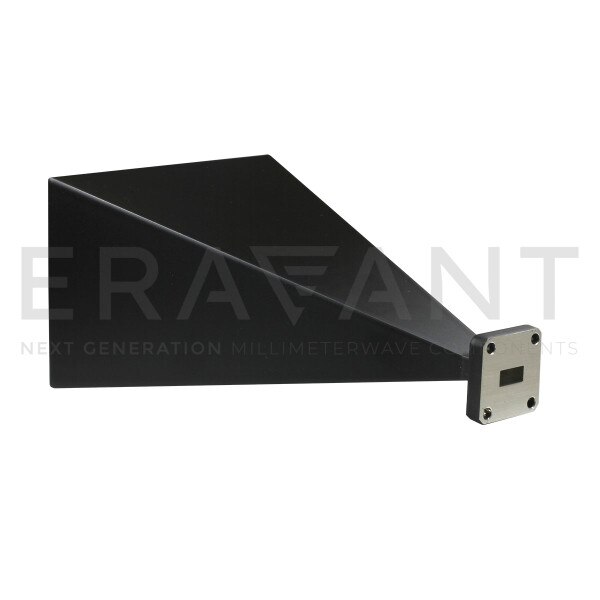

SAR-2309-34-S2 is a WR-34 pyramidal horn antenna that operates from 22 to 33 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-34 waveguide with UG-1530/U flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$720.00
10 - 24$648.00
25 +$583.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane10°
3 dB Beamwidth, H-Plane11°
Return Loss23 dB
Antenna PortWR-34 Waveguide
