WR-22 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0500PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

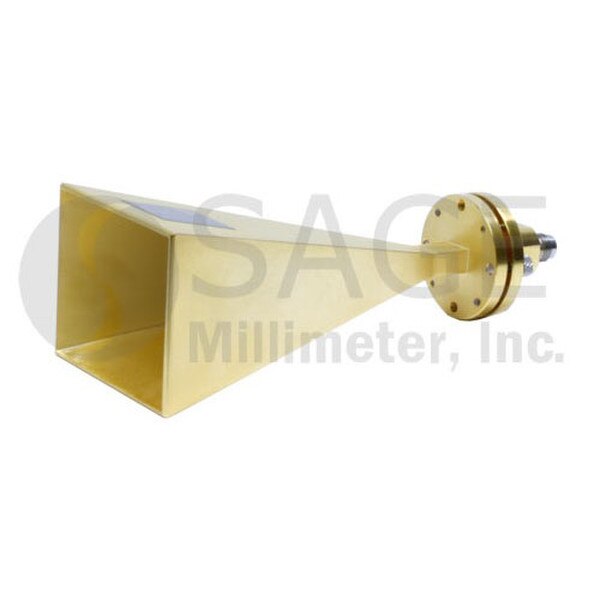

SAR-2309-222F-E2 is a Q-band pyramidal horn antenna with a end launch(180°) 2.40 mm (F) coax connector to cover the frequency range of 33 GHz to 50 GHz. The antenna offers 23 dBi nominal gain and a typical half power beamwidth of 10 degrees on the E-plane and 11 degrees on the H-plane. The antenna supports linear polarized waveforms. Right angle (90°) 2.40 mm (F) connector configuration is available under model SAR-2309-222F-R2.
