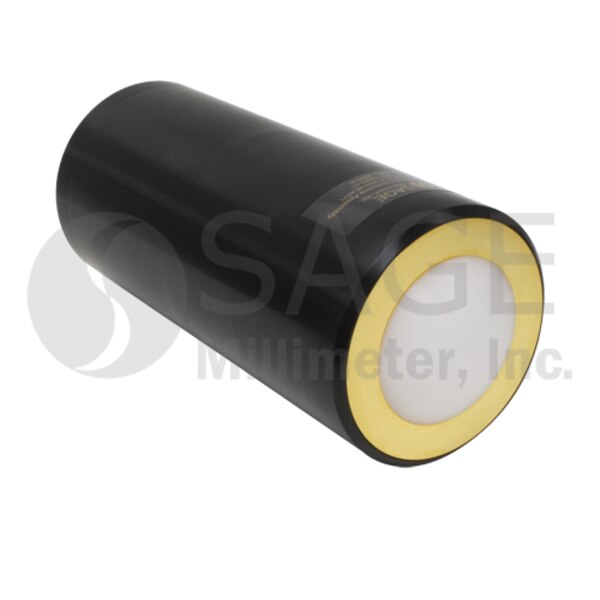

Custom WR-28 Waveguide Dual-Polarized Lens Corrected Antenna Assembly

SAL-2734032309-28-S1-DP-WR is a full band, dual polarized, WR-28 lens corrected antenna assembly that operates between 26.5 and 40 GHz. The antenna features an integrated orthomode transducer (OMT) that provides high port isolation and high cross-polarization cancellation. The OMT enables the antenna to separate a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combine two linear polarized waveforms into one circular or elliptical polarized waveform or vice versa. Excellent aperture efficiency and low side lobe levels are achieved with a low loss lens. A weather resistant configuration makes the antenna suitable for outdoor use. The horizontal and vertical ports are WR-28 waveguides with UG-599/U flanges and 4-40 threaded holes.
