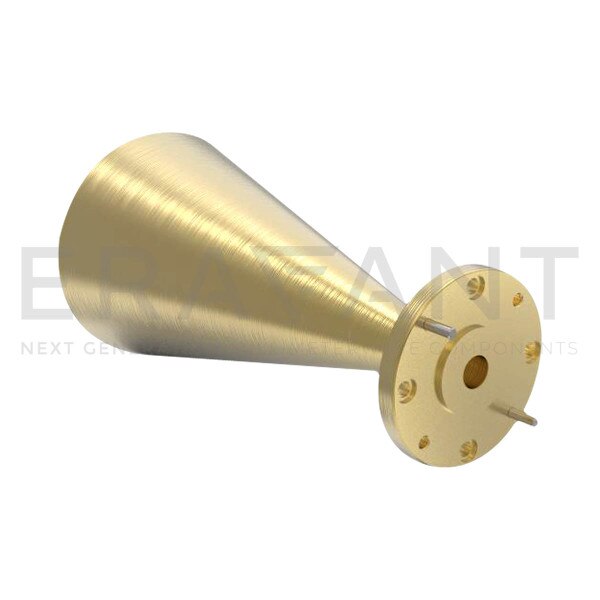

U-Band Conical Horn Antenna

23 dBi Gain, 43 to 50 GHz, 0.188" Diameter Circular Waveguide
SKU:SAC-2309-188-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2309-188-S2 is a U-band conical horn antenna that operates from 43 to 50 GHz. The antenna offers 23 dB nominal gain and a typical half powerbeam width of 11 degrees on the E-plane and 13 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.188" diameter circular waveguide with UG-383/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 - 49$486.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency43 GHz
Maximum Frequency50 GHz
Gain23 dBi
3 dB Beamwidth, E-Plane11°
3 dB Beamwidth, H-Plane13°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.188" Dia Circular WG
