J-Band Orthomode Transducer

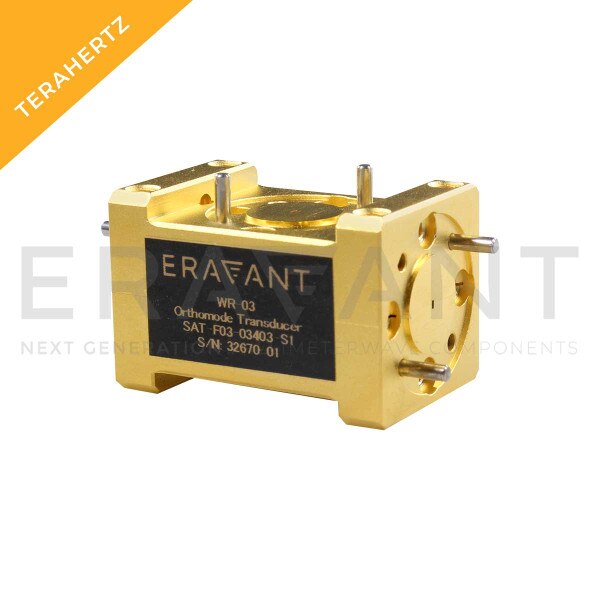

SAT-F03-03403-S1 is a WR-03 orthomode transducer (OMT) that operates from 220 and 330 GHz. The OMT separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform or vice versa. The OMT supports vertical and horizontal polarized waveguide forms with high port isolation and low insertion loss. The common antenna port is a 0.034” square waveguide, while the vertical and horizontal ports are standard WR-03 waveguides with UG-387/U-M anti-cocking flanges.
