J-Band Compact Level Setting Attenuator

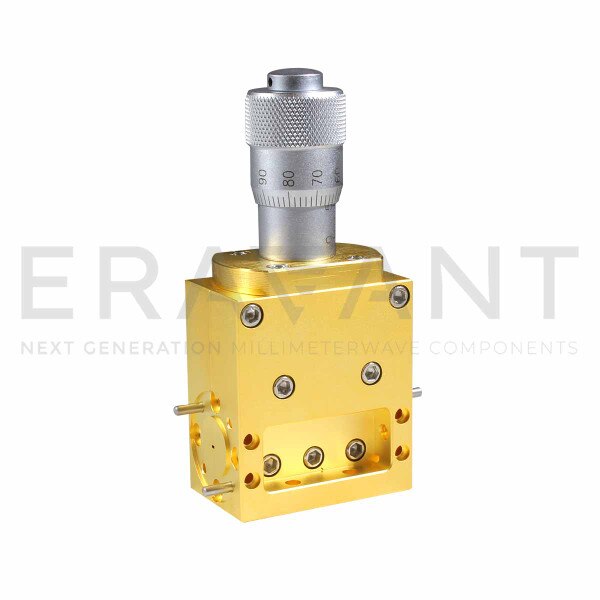

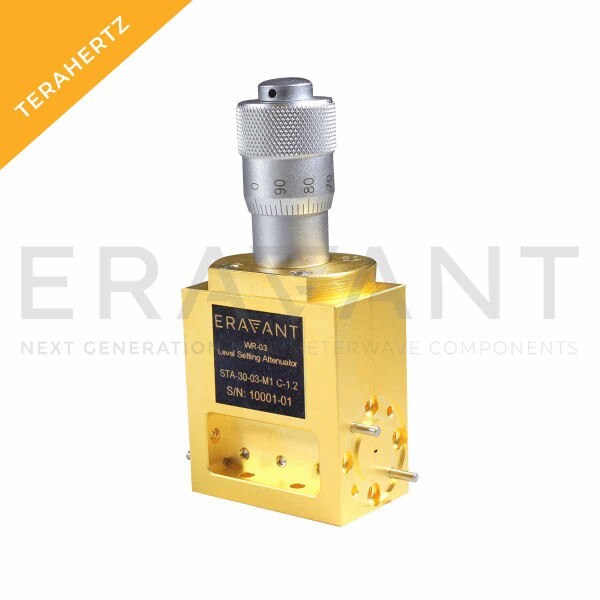

STA-30-03-M1-C-1.2 is a WR-03 compact level setting attenuator that covers the frequency range from 220 to 330 GHz. The level setting attenuator is an ideal piece of equipment in waveguide systems where broadband level setting is required. The attenuator exhibits 1.8 dB typical insertion loss and up to 30 dB nominal attenuation value across the entire operating bandwidth. For accurate direct reading attenuation, dual function direct reading and programmable attenuators are recommended. The other types, such as standard level setting and fixed tuned attenuators are also available under different model numbers.
