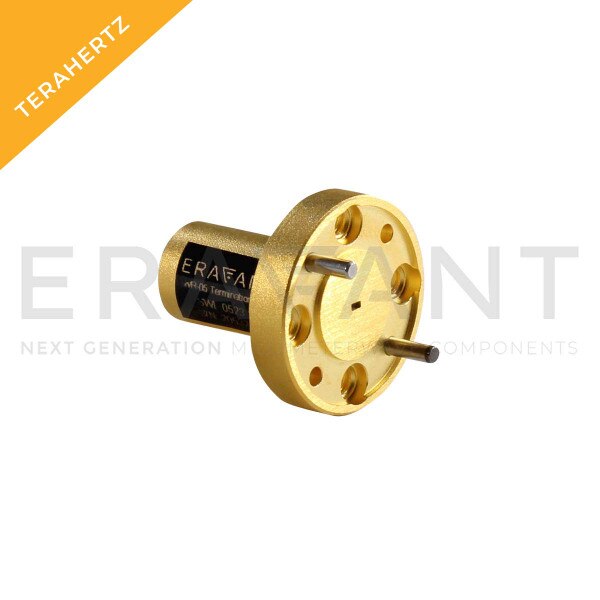

J-Band Fixed Waveguide Termination Load

220 to 330 GHz, 0.1 W Power Handling, WR-03 Waveguide
SKU:SWL-0323-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWL-0323-S1 is a low power, WR-03 waveguide termination load that covers the frequency range of 220 to 330 GHz. The termination load exhibits a typical return loss of 25 dB. It is designed and manufactured to offer a good match for system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,050.00
5 - 9 $945.00
10 - 24 $850.50

Bulk Availability

QuantityAvailability
1 - 2In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Power Handling, Watts0.1 W
Power Handling, dBm20 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-03 Waveguide
