Reflective SPST Switch

220 to 290 GHz, 35 dB Isolation, WR-03
Availability:IN STOCKPlease contact us if you need more units than what is available online.

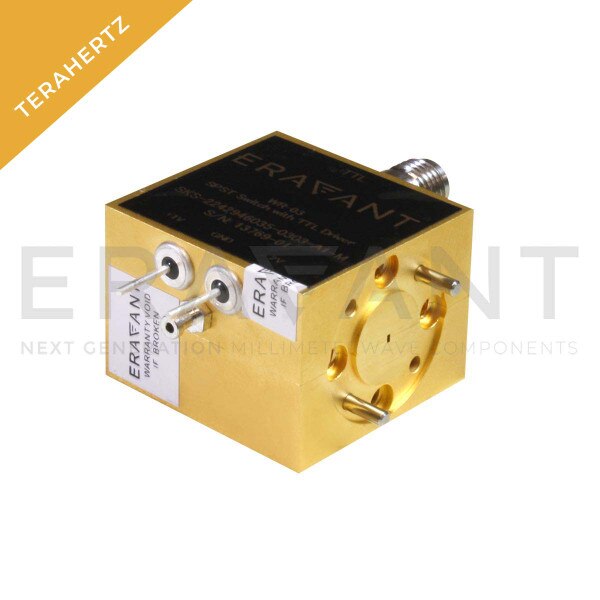

SKS-2242946035-0303-R1-M is a single pole, single throw (SPST) reflective switch with a TTL driver that covers 220 to 290 GHz. This model offers an insertion loss of 6 dB with a typical isolation of 35 dB. The SPST switch has a WR-03 waveguide with UG-387/U-M anti-cocking flanges at the RF input and output and a female SMA connector for TTL control. The SPST switch can be modified for various operational frequencies under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,850.00
3 - 4 $4,607.50
5 - 9 $4,377.13

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency290 GHz
Insertion Loss6 dB
Isolation35 dB
Bias+1 VDC/3 mA (Vdd Max)
Switching Speed100 ns
Switch TypeReflective
RF PortWR-03 WG
