Broadband Reflective SPDT Solid State Switch

22 to 90 GHz, 25 dB Isolation, 1.0 mm Female
SKU:SKD-2239036025-1F1F-R1-M
Availability:IN STOCKPlease contact us if you need more units than what is available online.

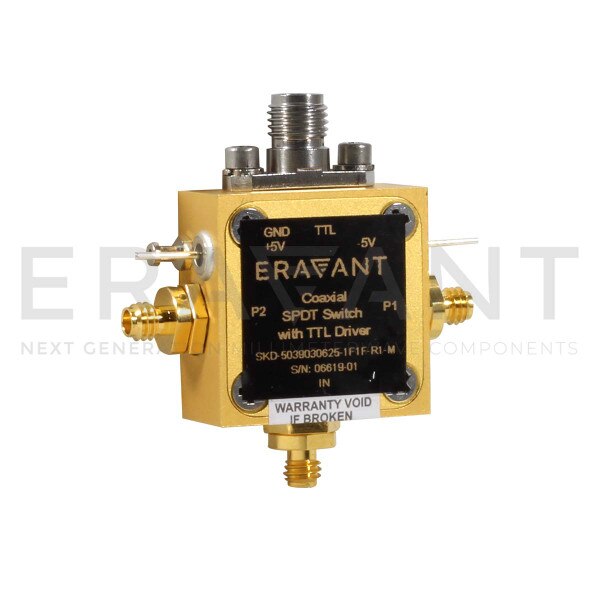

SKD-2239036025-1F1F-R1-M is a MMIC based, solid state single pole, double throw (SPDT), reflective type switch with a TTL driver that operates between 22 and 90 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing circuit loss transmission losses. The SPDT switch offers 25 dB port-to-port isolation with a typical switching speed of 100 nanoseconds. The input and output connectors of the switch are 1.0 mm female. Other connector options, such as WR-12 waveguide, is offered under model number of SKD-6039033530-1212-R1-M.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $2,450.00
5 - 9 $2,205.00
10 - 24 $1,984.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency90 GHz
Insertion Loss6.0 dB
Isolation25 dB
RF Input Power+20 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF Port1.0 mm Female
