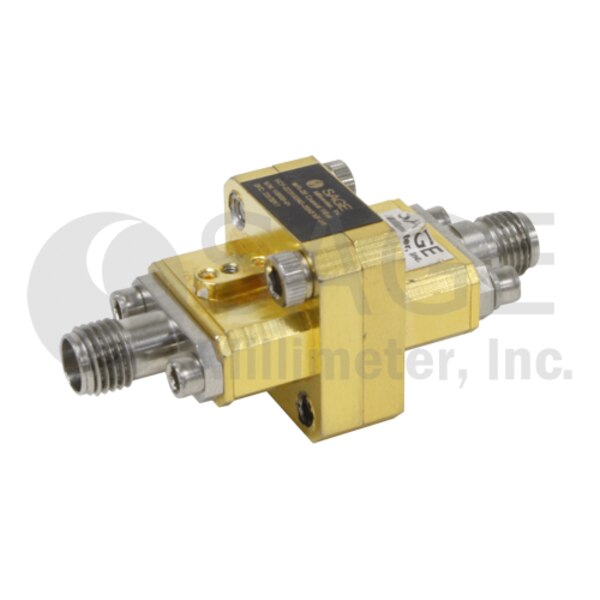

WR-28 Coaxial Highpass Filter

22 to 40 GHz, 40 dB Rejection from DC to 18 GHz
SKU:SCF-22318340-28KFKF-H1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCF-22318340-28KFKF-H1 is a coaxial highpass filter with a passband frequency from 22 to 40 GHz. The filter rejects frequencies from DC to 18 GHz and provides a nominal insertion loss of 1.0 dB in its passband with low ripple. Typical rejection for this model is 40 dB. The RF ports offer female 2.92 mm connectors. However, the models with other connector type, such as male connector, are also available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $700.00
10 - 24 $630.00
25 - 49 $567.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency22 GHz
Maximum Passband Frequency40 GHz
Minimum Rejection FrequencyDC
Maximum Rejection Frequency18 GHz
Rejection40 dB
Insertion Loss1.0 dB
VSWR1.6
Impedance50 Ohms
Power Handling50 W
RF Ports2.92 mm (F)
