High Power Full Band Junction Isolator

22 to 33 GHz, 18 dB Isolation, WR-34 Waveguide
SKU:SNF-34-I5-H
Availability:IN STOCKPlease contact us if you need more units than what is available online.

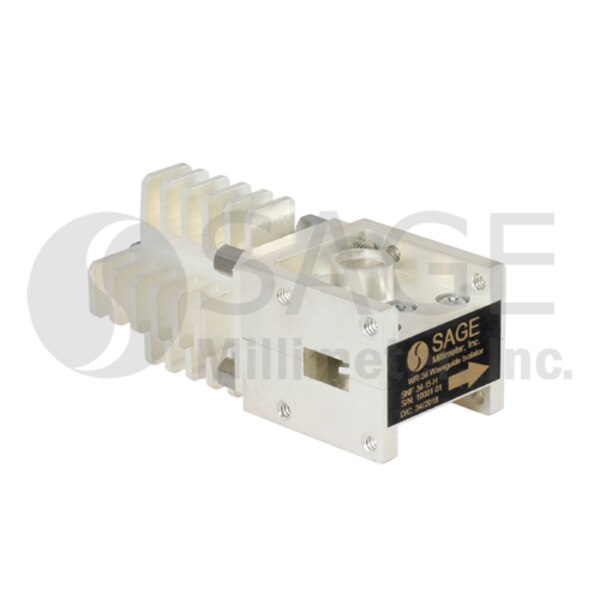

SNF-34-I5-H is a WR-34, waveguide junction isolator that covers the frequency range of 22 to 33 GHz. The full band isolator is designed and manufactured to provide a low insertion loss of 0.45 dB typical with good flatness. The isolator also offers a moderate isolation of 18 dB for system integration and a high power handling. The input and output ports are WR-34 waveguides with UG-1530/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $750.00
10 - 24 $675.00
25 - 49 $607.50

Bulk Availability

QuantityAvailability
1 - 7In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss0.45 dB
Isolation18 dB
Return Loss18 dB
Forward Power Handling25 W
Reverse Power Handling10 W
RF PortWR-34 Waveguide
Device TypeIsolator
