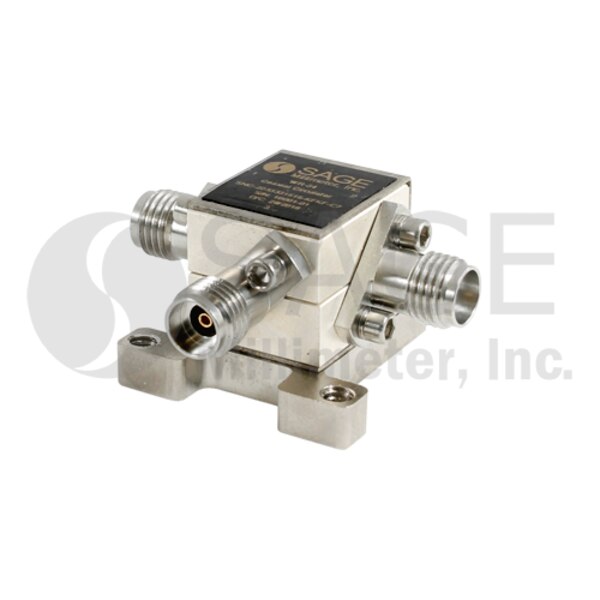

WR-34 Coax Circulator

22 to 33 GHz, 14 dB Isolation, 2.92 mm (F)
SKU:SNC-2233331515-KFKFKF-C7
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SNC-2233331515-KFKFKF-C7 is a full band coaxial circulator that covers the frequency range of 22 GHz to 33 GHz. The wide band circulator is designed and manufactured to provide an insertion loss of 1.6 dB typical with good flatness. The circulator also offers a moderate isolation of 14 dB and a high-power handling for system integration. The input and output ports are K (F) connectors. The RF interface of other type of connector combinations are also offered under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$520.00
10 - 24$468.00
25 - 49$421.20

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Insertion Loss1.6 dB
Isolation14 dB
Return Loss14 dB
Forward Power Handling10 W
Impedance50 Ohms
RF Input and Output2.92 mm (F) Connectors
