K-Band Junction Circulator

22 to 26.5 GHz, 18 dB Isolation, WR-42 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

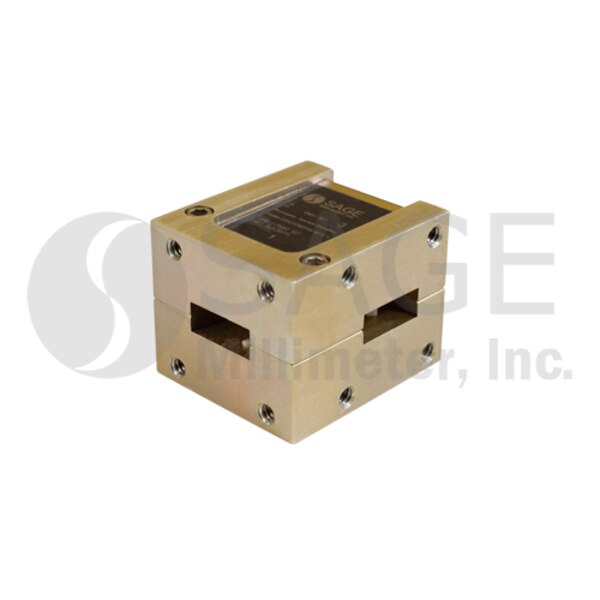

SNW-2232730318-42-CI is a K band waveguide junction circulator that covers the frequency range of 22 to 26.5 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.3 dB nominal, a typical isolation of 18 dB, and a much shorter insertion length for system integration. The input and output ports are WR-42 waveguides with UG-595/U flanges. The circulator implements a U-shaped magnet shielding steel cover to protect it from magnetic field interference.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $275.00
25 - 49 $247.50
50 - 99 $222.75

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency26.5 GHz
Insertion Loss0.3 dB
Isolation18 dB
Return Loss17 dB
Power Handling2 W (CW)
Reverse Power Handling-
RF PortWR-42 Waveguide
Device TypeCirculator
