Ka-Band Lens Corrected Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-06D.
A 2D pattern measurement test is offered under service number FTA-0400PATT-06D.

CLICK HERE to read more about our antenna measurement capabilities.

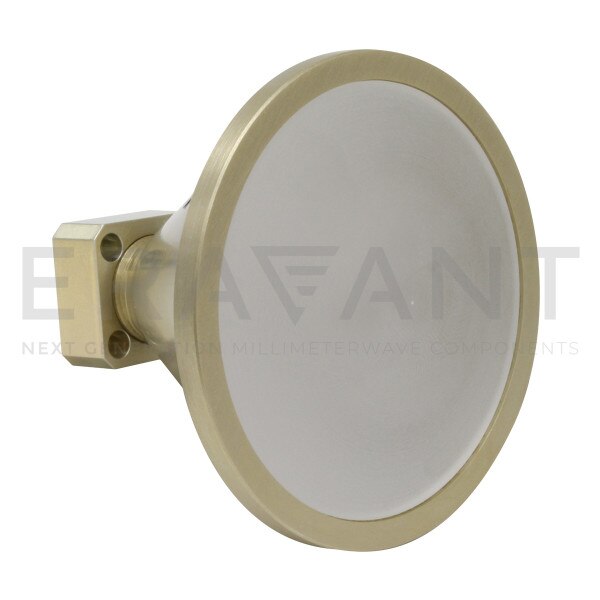

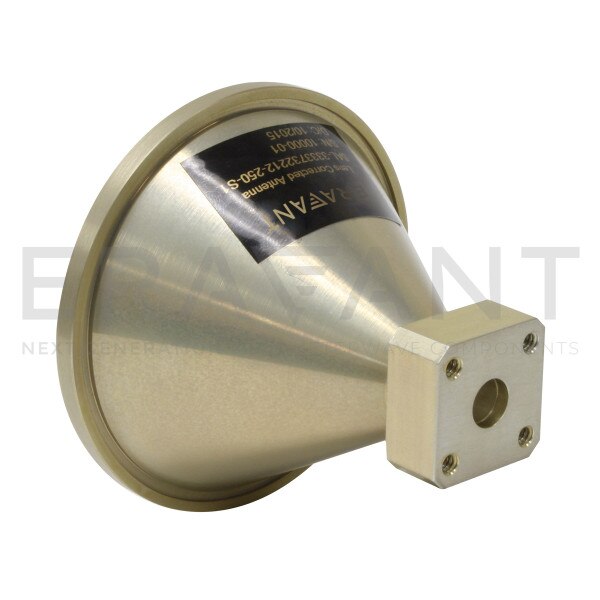

SAL-3333732212-250-S1 is a Ka-band lens corrected antenna that operates from 33 to 37 GHz. At a center frequency of 35 GHz, the antenna delivers 22 dBi nominal gain and 12 degrees typical half power beamwidth. The antenna employs a low loss lens to offer excellent aperture efficiency and low sidelobe levels to support both linear and circular polarized waveforms. The lens corrected antenna is equipped with a 0.250" diameter circular waveguide and UG-599/U-M flange as its input port.
