G-Band Conical Horn Antenna

22 dBi Gain, 140 to 220 GHz, 0.067" Diameter Circular Waveguide
SKU:SAC-2214-067-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

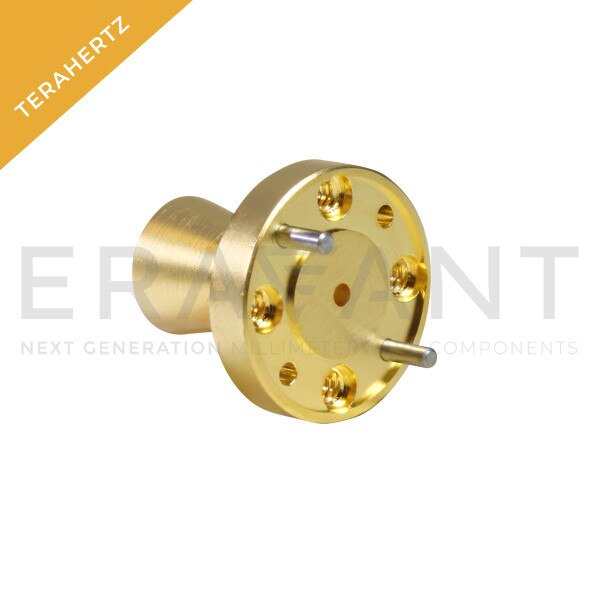

SAC-2214-067-S2 is a G-band conical horn antenna that operates from 140 to 220 GHz. The antenna offers 22 dBi nominal gain and a typical half power beamwidth of 13.5 degrees on the E-plane and 15 degrees on the H-plane. The horn also offers typical sidelobes of -15 dB on the E-plane and -25 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a Ø0.067” circular waveguide with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency140 GHz
Maximum Frequency220 GHz
Gain22 dBi
3 dB Beamwidth, E-Plane13.5°
3 dB Beamwidth, H-Plane15°
Return Loss20 dB
PolarizationLinear and Circular
Antenna Port0.067" Dia Circular WG
