SMA Coaxial Bandpass Filter

20 to 24 GHz, 40 dB Minimum Rejection from DC to 18.5 GHz
SKU:SCF-22304340-SFSF-B3
Availability:6 to 8 Weeks ARO

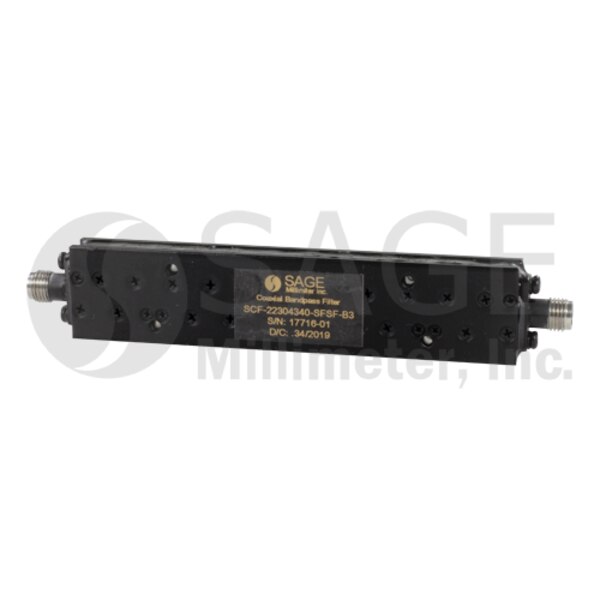

SCF-22304340-SFSF-B3 is a coaxial bandpass filter with a passband frequency of 20.0 to 24.0 GHz. The typical insertion loss of the bandpass filter is 3 dB and the passband ripple is ±0.75 dB. The rejection frequencies are 18.5 GHz or lower and 24.25 to 30 GHz. The typical rejection is 40 dB and the typical passband return loss of the filter is 10 dB. The RF connectors of the filter are SMA Female connectors. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,700.00
5 - 9$1,530.00
10 - 24$1,377.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency20 GHz
Maximum Passband Frequency24 GHz
Low Side Rejection40 dB
High Side Rejection40 dB
Return Loss10 dB
Insertion Loss3.0 dB
Impedance50 Ohms
RF PortsSMA (F)
