WR-34 Coaxial Rectangular Horn Antenna

20 dBi Gain, 22 to 33 GHz, 2.92 mm (F)
SKU:SAR-2013-34KF-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
For the male version please CLICK HERE to contact us.

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

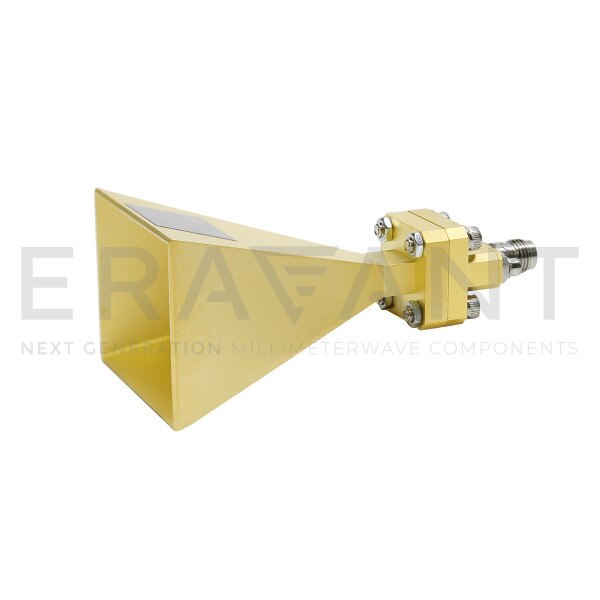

SAR-2013-34KF-E2 is a pyramidal horn antenna with a end launch (180°) 2.92 mm (F) coax connector to cover the frequency range of 22 GHz to 33 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. Right angle (90°) 2.92 mm (F) connector configuration is available under model SAR-2013-34KF-R2.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency22 GHz
Maximum Frequency33 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane14°
3 dB Beamwidth, H-Plane16°
Return Loss20 dB
Antenna Port2.92 mm Female
