WR-28 Coaxial Rectangular Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

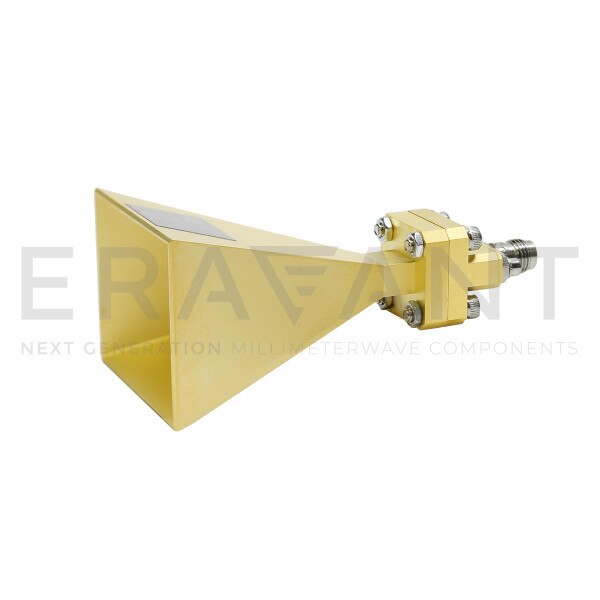

SAR-2013-282F-E2 is a Ka-band pyramidal WR-28 Coaxial rectangular horn antenna with a end launch (180°) 2.4 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The coaxial rectangular horn antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with 2.4 mm (M) connector is offered under model number SAR-2013-282M-E2.
