WR-28 Coaxial Rectangular Horn Antenna

20 dBi Gain, 26.5 to 40 GHz, 2.92 mm (F), Ka-Band
SKU:SAR-2013-28KF-E2
Availability:1 Week ARO

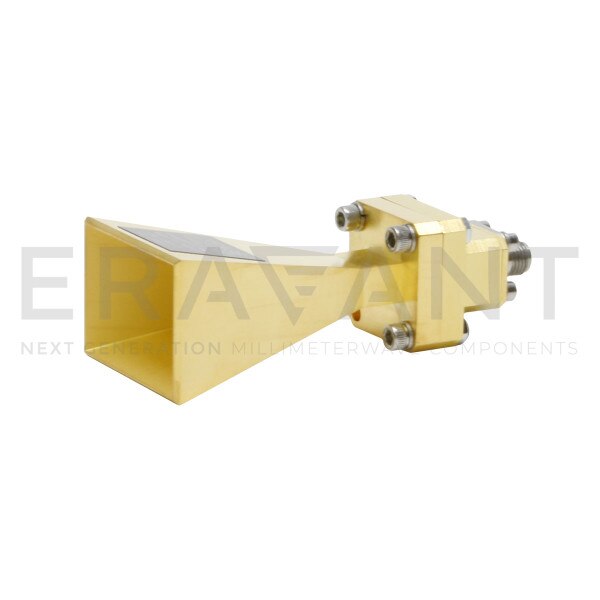

SAR-2013-28KF-E2 is a Ka-band pyramidal horn antenna with a end launch (180°) 2.92 mm (F) coax connector to cover the frequency range of 26.5 GHz to 40 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 16 degrees on the H-plane. The antenna supports linear polarized waveforms. The model with 2.92 mm (M) connector is offered under model number SAR-2013-28KM-E2.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,100.00
5 - 9$990.00
10 +$891.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane14°
3 dB Beamwidth, H-Plane16°
Return Loss19 dB
Antenna Port2.92 mm Female
