WR-15 Waveguide Conical Horn Antenna

20 dBi Gain, 58 to 68 GHz, V-Band
SKU:SAC-2012-15-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

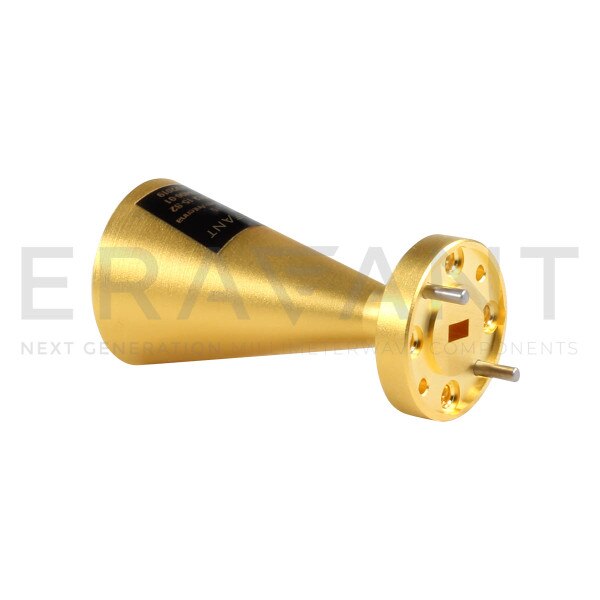

SAC-2012-15-S2 is a V-band conical horn antenna with a WR-15 rectangular waveguide interface that operates from 58 to 68 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear polarization. The antenna port is a WR-15 waveguide with UG-385/U anti-cocking flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$600.00
10 - 24$540.00
25 +$486.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency58 GHz
Maximum Frequency68 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear
Antenna PortWR-15 Waveguide
