WR-12 Waveguide Rectangular Horn Antenna

20 dBi Gain, 60 to 90 GHz, E-Band
SKU:SAR-2013-12-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

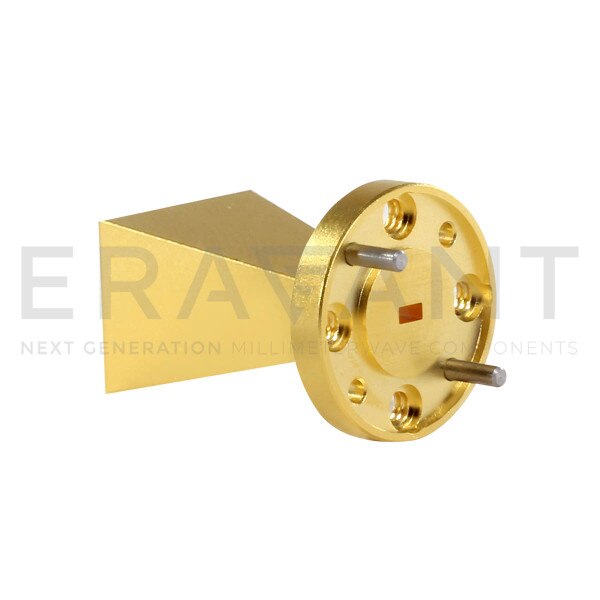

SAR-2013-12-S2 is an E-band pyramidal horn antenna that operates from 60 to 90 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 14 degrees on the E-plane and 15 degrees on the H-plane. The antenna supports linear polarized waveforms. The input of this antenna is a WR-12 waveguide with UG-387/U flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$540.00
10 - 24$486.00
25 +$437.40

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane14°
3 dB Beamwidth, H-Plane15°
Return Loss23 dB
Antenna PortWR-12 Waveguide
