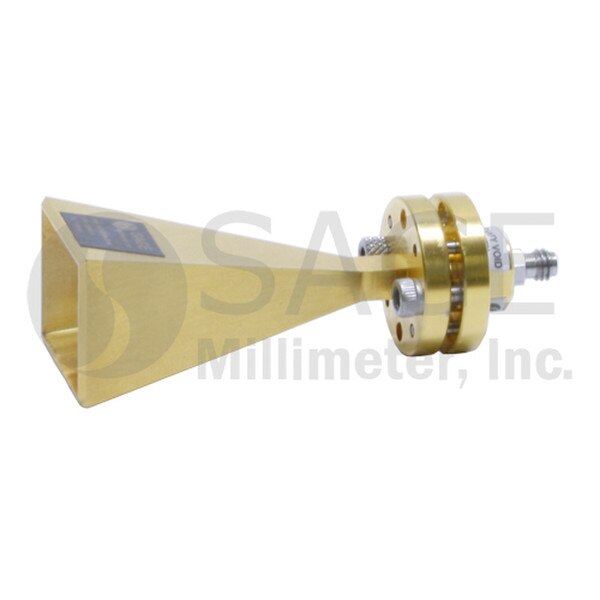

WR-10 Coaxial Rectangular Horn Antenna

SAR-2013-101F-E2 is a W-band pyramidal horn antenna with a end launch (180°) 1 mm (F) coax connector to cover the frequency range of 75 GHz to 110 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 18 degrees on the H-plane. The antenna supports linear polarized waveforms. Right angle (90°) 1 mm (F) connector configuration is available under model SAR-2013-101F-R2.
