Ka-Band Microstrip Patch Array Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-PA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-PA.

CLICK HERE to read more about our antenna measurement capabilities.

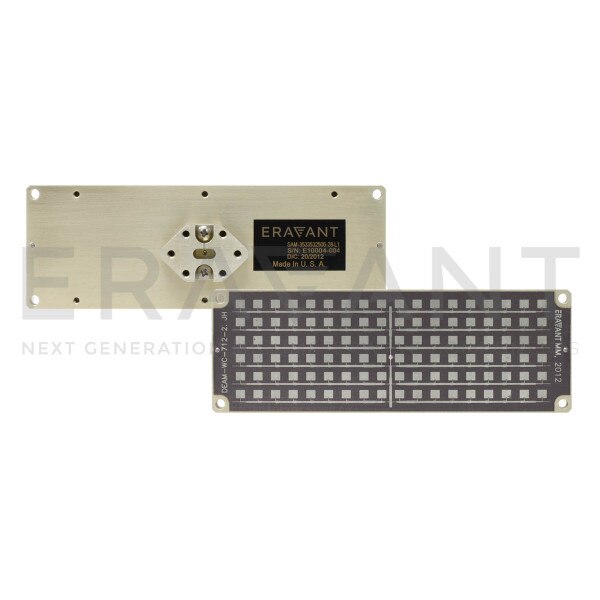

SAM-3533532005-28-L1 is a linear polarized, 35 GHz microstrip patch array antenna. The antenna implements a series-fed power distribution to achieve low side lobe levels. The antenna has a gain of 20 dBi and a beamwidth of 15 degrees vertically and 4.8 degrees horizontally, with a better than 18 dB side lobe suppression level. The antenna is constructed with a high performing, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is a standard WR-28 waveguide with a UG-599/U flange. A female 2.92 mm connector version is offered under model number SAM-3533532005-KF-L1
