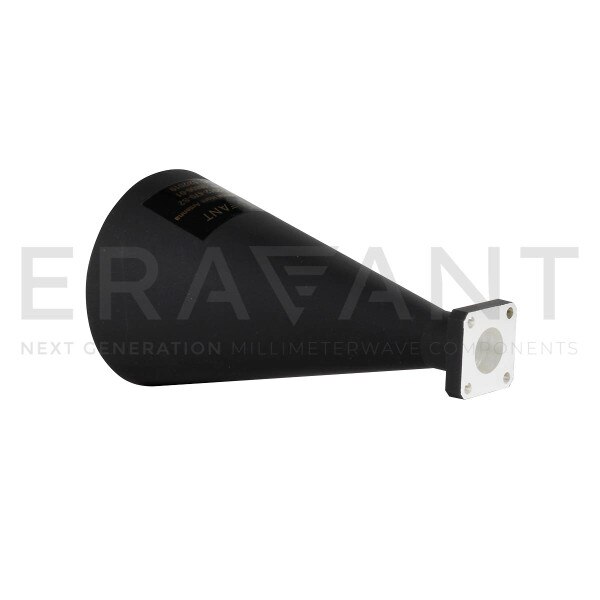

K-Band Conical Horn Antenna

20 dBi Gain, 17.5 to 20.5 GHz, 0.470" Diameter Circular Waveguide
SKU:SAC-2012-470-S2
Availability:4 to 6 Weeks ARO
SAC-2012-470-S2 is a K-band conical horn antenna that operates from 17.5 to 20.5 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -14 dB on the E-plane and -21 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.470" diameter circular waveguide with UG-595/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$490.00
25 - 49$441.00
50 - 99$396.90

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency17.5 GHz
Maximum Frequency20.5 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.470" Dia Circular WG
