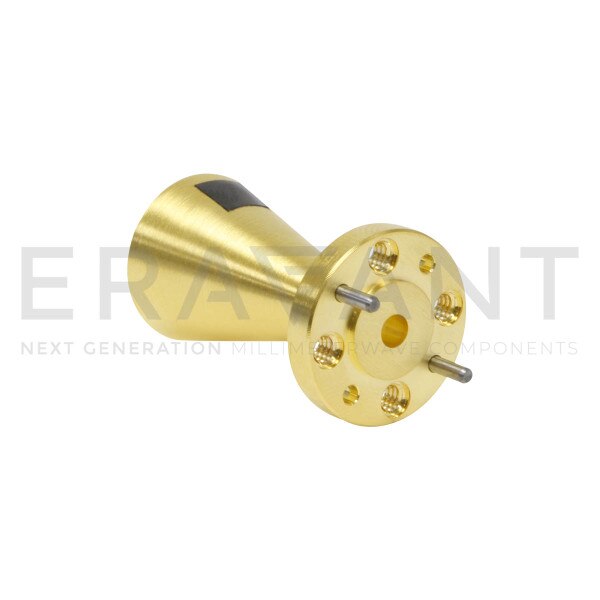

U-Band Conical Horn Antenna

20 dBi Gain, 50 to 60 GHz, 0.165" Diameter Circular Waveguide
SKU:SAC-2012-165-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2012-165-S2 is a U-band conical horn antenna that operates from 50 to 60 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.165" diameter circular waveguide with UG-383/U-M flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 24 $490.00
25 - 49 $441.00
50 - 99 $396.90

Bulk Availability

QuantityAvailability
1 - 15In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency60 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.165" Dia Circular WG
