E-Band Conical Horn Antenna

20 dBi Gain, 68 to 77 GHz, 0.125" Diameter Circular Waveguide
SKU:SAC-2012-125-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.

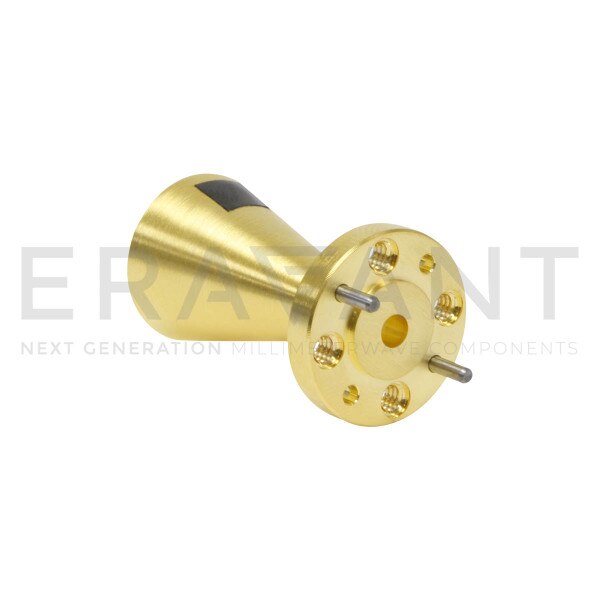

SAC-2012-125-S2 is an E-band conical horn antenna that operates from 68 to 87 GHz. The antenna offers 20 dB nominal gain and a typical half powerbeam width of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125" diameter circular waveguide with UG-387/U-M flange.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$490.00
25 - 49$441.00
50 +$396.90

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency68 GHz
Maximum Frequency77 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.125" Dia Circular WG
