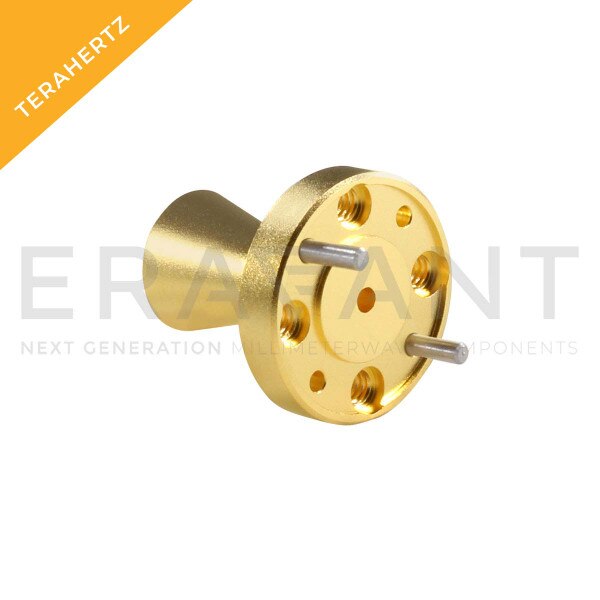

D-Band Conical Horn Antenna

20 dBi Gain, 115 to 140 GHz, 0.075" Diameter Circular Waveguide
SKU:SAC-2012-075-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAC-2012-075-S2 is a D-band conical horn antenna that operates from 115 to 140 GHz. The antenna offers 20 dBi nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane. The horn also offers typical sidelobes of -20 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.075” diameter circular waveguide with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $490.00
25 - 49 $441.00
50 - 99 $396.90

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency115 GHz
Maximum Frequency140 GHz
Gain20 dBi
3 dB Beamwidth, E-Plane16°
3 dB Beamwidth, H-Plane20°
Return Loss23 dB
PolarizationLinear and Circular
Antenna Port0.075" Dia Circular WG
