V-Band Omnidirectional Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-WR15GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-WR15PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

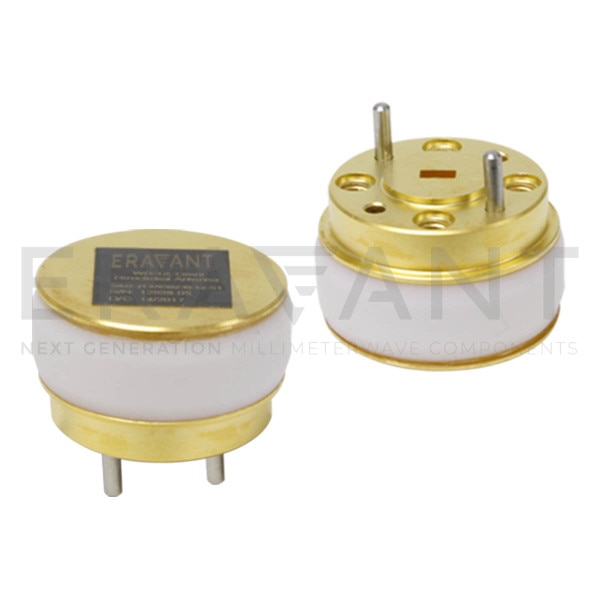

SAO-5037530230-15-S1 is a full band, WR-15 V-band omnidirectional antenna that operates between 50 and 75 GHz. This vertically polarized omnidirectional antenna offers 360 degrees azimuth coverage with a 2 dBi typical gain and ±2.0 dB nominal gain flatness. The antenna features a half power beamwidth of 30 degrees in the vertical direction. The antenna port is with WR-15 waveguide and standard UG385/U flange.
