Vector Network Analyzer Coaxial Calibration Kit

2.4 mm, DC to 50 GHz
SKU:STQ-TO-2F2M-U3-CKIT1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

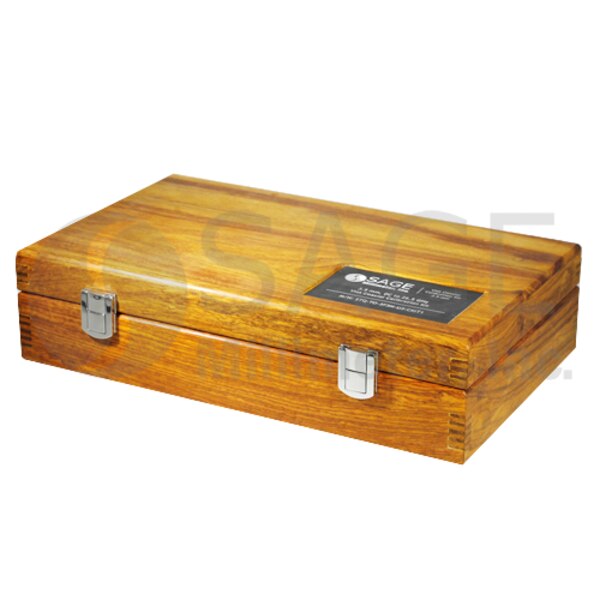

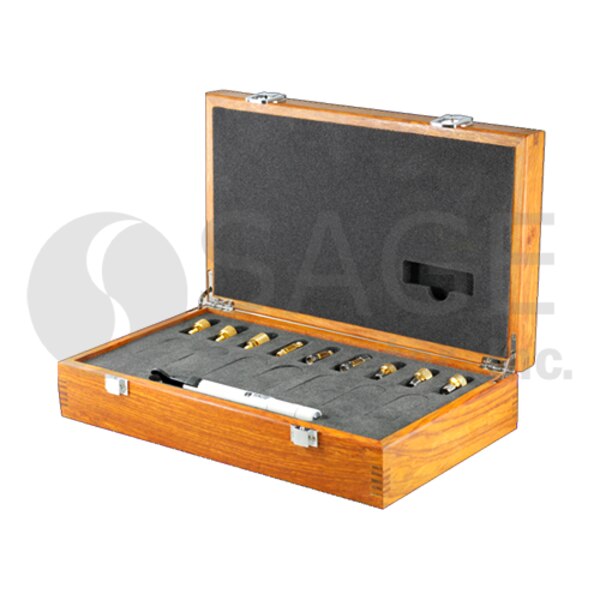

STQ-TO-2F2M-U3-CKIT1 is a 2.4 mm coaxial vector network analyzer (VNA) calibration kit designed to work with industry standard network analyzers in the frequency range of DC to 50 GHz. The calibration kit consists of 2.4 mm male and female opens, shorts, matching loads, 2.4 mm male to male, male to female and female to female adapters, and a 5/16" Hex Torque wrench. It is collected in a wooden box and is an ideal higher perfomance metrology grade calibration set for VNA system calibrations.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$4,650.00
3 - 4$4,417.50
5 +$4,196.63

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Frequency RangeDC to 50 GHz
Type2.4 mm

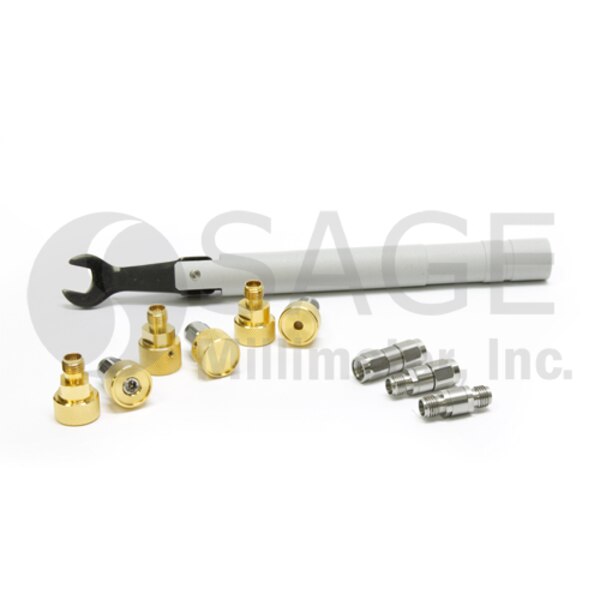

Components IncludedMetrology 2.4 mm Male and Female Matching Loads
Metrology 2.4 mm Male and Female Opens
Metrology 2.4 mm Male and Female Shorts
Metrology 2.4 mm (M), (F), and (M) to (F) Adapters
Metrology 5/16" Hex Torque Wrench (3.5 mm)
Electrical SpecificationsLoad VSWR:1.106:1 Max
Load Power Handling:0.5 Watts Max
Open Phase Error:±2.25° Max
Short Phase Error:±2.0° Max
Adapter VSWR:1.222:1 Max
