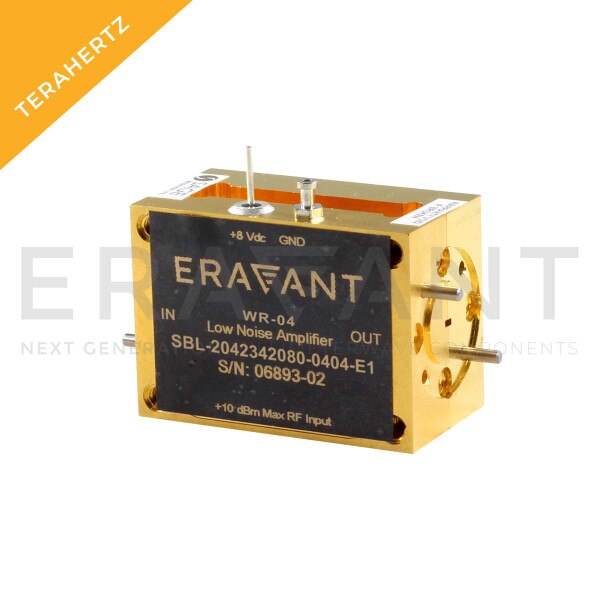

WR-04 Band Low Noise Amplifier

195 to 230 GHz, 20 dB Gain, 8 dB Noise Figure, In-line WR-04 Waveguide
SKU:SBL-2042342080-0404-E1
Availability:Contact Us for Quote
SBL-2042342080-0404-E1 is a WR-04 low noise amplifier with a typical small signal gain of 20 dB and a nominal noise figure of 8.0 dB across the frequency range of 195 to 230 GHz. The DC power requirement for the amplifier is +8 VDC/50 mA. The input and output port configuration offers an inline structure with WR-04 waveguides and UG-387/U-M anti-cocking flanges.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency195 GHz
Maximum Frequency230 GHz
Gain20 dB
Noise Figure8.0 dB
P1dB-5 dBm
Input Return Loss5 dB
Output Return Loss5 dB
DC Bias+8 VDC/50 mA
RF Input/OutputWR-04 Waveguide
