WR-04 Band Noise Source with Faraday Isolator

A calibration service is offered. Please contact for quotation. Please be noted:

A complimentary calibration service is included with every new product order, with additional calibration services recommended annually.

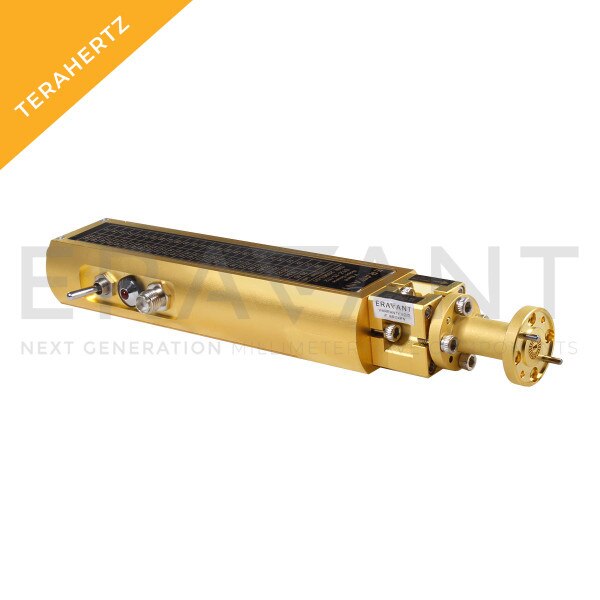

STZ-20423415-04-IT2 is a WR-04 noise source that delivers 15 dB nominal ENR across the frequency range of 195 to 230 GHz. The RF port has WR-04 Waveguide with UG-387/U-M Anti-Cocking Flange and the DC bias port is equipped with a female BNC connector, which is readily available for standard noise figure meter and noise figure analyzer interfaces. The noise source is designed with improved port return loss for more reliable and accurate noise figure measurements. The module can work also in either CW or pulse AM mode up to 1 kHz depending on the driving signal. The noise source features TTL triggering signal port for automatic test systems and a toggle switch to manually turn the module on and off. A Calibration Certificate for ENR values will be included.
