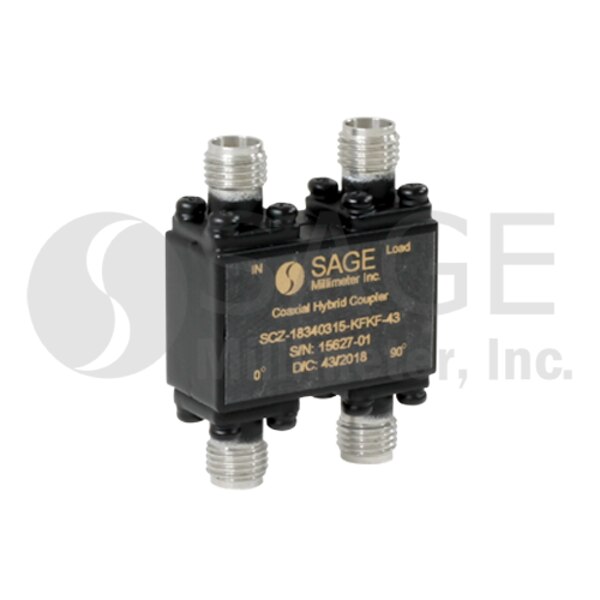

90 Degree Coaxial Hybrid Coupler

18 to 40 GHz, 2.92 mm (F) Input/Output Ports, 3 dB Coupling
SKU:SCZ-1834031209-KFKF-43
Availability:4 to 6 Weeks ARO
SCZ-1834031209-KFKF-43 is a coaxial 90-degree hybrid coupler that covers the frequency range of 18 to 40 GHz. The nominal coupling is 3 dB and the typical insertion loss is 2.0 dB. The typical isolation of the coupler is 12 dB. The RF connectors of the coupler are female 2.92 mm (K) connectors. The power handling of the coupler is 50 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$730.00
10 - 24$657.00
25 - 49$591.30

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency18 GHz
Maximum Frequency40 GHz
Insertion Loss2.0 dB
Coupling3 dB
Return Loss14 dB
Impedance50 Ohms
RF PortsK (F)
